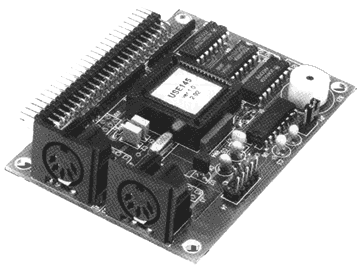

Universal Software Configurable Encoder

Users can program the encoder to work with keypads with any layout and assign arbitrary key codes

TYPICAL APPLICATIONS:

  • Electronic controls
  • Electronic instruments
  • Point-of-sale terminals
  • Custom keyboards



Key Benefits:

  • Keypads with any combinations of row/column and any pinout can be used without hardware modification.
  • Keypad layout and all key codes can be modified in-house without increasing cost or affecting development time.
  • Zero lead time for any custom configuration.
  • Optional buzzer provides audio feedback.
  • Allows to operate in parallel with standard keyboard or another USE145.
  • Key Codes, Interface type (PC/XT, PC/AT or RS232), keypad pinout, Baud rate, typematic period and typematic delay are all user-programmable parameters.
  • Parameters that have been defined for a particular application can be stored in a file, retrieved and programmed into a new encoder.
SPECIFICATIONS:
Power supply voltage 5 V DC @ 25mA(typ)
Buzzer (opt.) power 5 V or external (jumper selectable)
RS 232 commun. parameters 300 to 9600 Baud, 8 bit, no parity
Keypad connector 25x2 right-angle header, 25 mils sq., 100 mils spacing
Interface connectors 2x5 straight header and two 5-pin DIN connectors (std), DB9 connectors (opt.)
Operating temperature 0 degrees to 60 degrees C

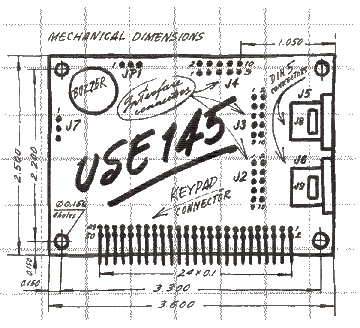

Size 2.5" x 3.6"
